Chapter 4: Q13E (page 912)

An open plastic soda bottle with an opening diameter of 2.5cmis placed on a table. A uniform 1.75-Tmagnetic field directed upward and oriented25掳 from the vertical encompasses the bottle. What is the total magnetic flux through the plastic of the soda bottle?

Short Answer

Expert verified

The total magnetic flux through the plastic of the soda bottle is-7.79脳10-4Wb

Step by step solution

01

Definition of magnetic flux

The term magnetic flux may be defined as the measurement of total magnetic field passing through the given area.

02

Determine the total magnetic flux through the plastic bottle

The sum of magnetic flux through the plastic and through the open cap is net magnetic flux through the bottle.

fnet=fplastic+fcapfnet=ofplastic+fcap=ofplastic=-fcap

Now

fplastic=-叠础肠辞蝉胃fplastic=-B蟺谤2肠辞蝉胃fplastic=-蟺谤2B肠辞蝉胃

Here B,A,rand 胃are magnetic field, area of open cap, radius and angle between magnetic field and the area vector respectively.

Put all the given values andr=d/2

fplastic=-蟺1.25脳10-2m21.75Tcos25掳fplastic=-7.79脳10-4Wb

Hence, the total magnetic flux through the plastic of the soda bottle is -7.79脳10-4Wb

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 魅影直播!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In the circuit shown in Fig. E26.47 each capacitor initially has a charge of magnitude 3.50 nC on its plates. After the switch S is closed, what will be the current in the circuit at the instant that the capacitors have lost 80.0% of their initial stored energy?


An electron at pointAinFig. E27.15has a speedv0of1.41脳106m/sFind (a) the magnitude and direction of the magnetic field that will cause the electron to follow the semicircular path fromAtoB, and (b) the time required for the electron to move fromAtoB.

An idealized ammeter is connected to a battery as shown in Fig.

E25.28. Find (a) the reading of the ammeter, (b) the current through the4.00惟

resistor, (c) the terminal voltage of the battery.

Fig. E25.28.

In Europe the standard voltage in homes is 220 V instead of the 120 used in the United States. Therefore a 鈥�100-W鈥� European bulb would be intended for use with a 220-V potential difference (see Problem 25.36). (a) If you bring a 鈥�100-W鈥� European bulb home to the United States, what should be its U.S. power rating? (b) How much current will the 100-W European bulb draw in normal use in the United States?

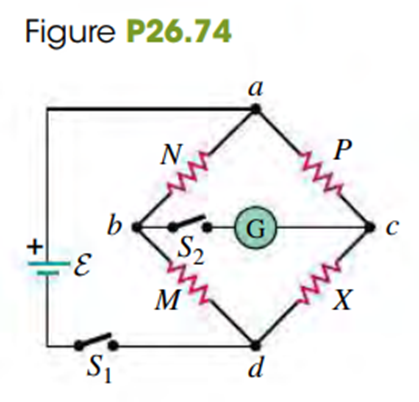

Question: The circuit shown in Fig. P26.74, called a Wheatstone Bridge, is used to determine the value of an unknown resistor X by comparison with three resistors M, N, and P whose resistances can be varied. For each setting, the resistance of each resistor is precisely known. With switches S1 and S2 closed, these resistors are varied until the current in the galvanometer G is zero; the bridge is then said to be balanced. (a) Show that under this condition the unknown resistance is given by X = MP/N. (This method permits very high precision in comparing resistors.) (b) If galvanometer G shows zero deflection when M = 850.0 鈩�, N = 15.00 鈩�, and P = 33.48 鈩�, what is the unknown resistance X?
