A straight wire carries a 10.0-A current (Fig. ). ABCDis a rectangle with point D n the middle of a 1.10-m segment of the wire and point C in the wire. Find the magnitude and direction of the magnetic field due to this segment at

(a) point A;

(b) point B;

(c) point C.

Short Answer

Expert verified
  1. 4.40×10-7Tk^
  2. 1.67×10-8Tk^
  3. 0 (zero).

Step by step solution

01

Solving part (a) of the problem.

The current element is shown in red in Fig. 1 and points in the +r-direction (the direction of the current), sodl→=1.10mmi^. The unit vector r^for each field point is directed from the current element (at D) toward that point: f is in the +y-direction for point A, at an angle 0 above the +r-direction for point B, and in the +r-direction for point C.

At point A,r^=j^, so

B→=μ04πldl→×r^r2=μ04πldl→ι^×j^r2=μ04πldl4πr2k^=10-7T.m/A10.0A1.10×10-3m5.00×10-2m2k^=4.40×10-7Tk^

The direction of at A is out of the x-y-plane of Fig.1

02

Solving part (b) of the problem.

From Fig.1 the distance from D to B is

r^=r→/r14.0i^+5.00j^/14.9cm=0.940i^+0.336j^From Eq

B→=μ04πldl→r2=μ04πldli^×0.940i^+0.336j^r2=μ0l4πdl0.336r2k^=10-7T.m/A10.0A1.10±10-3m0.336221×10-2m2k^=1.67×10-8Tk^

The direction of B→at B is out of the x-y plane of Fig.1

03

Solving part (c) of the problem.

At C,r^=i^ , so the cross productdl→=dli^×i^=0 andB→=0 thus.

The magnetic field lines caused by a straight wire are circles centered on the wire and lying in a plane perpendicular to it, and the direction of B→is given by the right-hand rule; coming out of the page.B→ has its greatest magnitude at points lying in the plane perpendicular to the segment length dl→(in red in Fig. 1) because there 0 = 90° and sin 0 = 1; indeed, B is greater at A (where θ= 90°) than at B (where 0 <θ <90°) than at C (where θ= 0°), as the answers of step (1). (2) and (3) show.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with ÷ÈÓ°Ö±²¥!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A 12.4-µF capacitor is connected through a 0.895-MΩ resistor to a constant potential difference of 60.0 V. (a) Compute the charge on the capacitor at the following times after the connections are made: 0, 5.0 s, 10.0 s, 20.0 s, and 100.0 s. (b) Compute the charging currents at the same instants. (c) Graph the results of parts (a) and (b) for t between 0 and 20 s

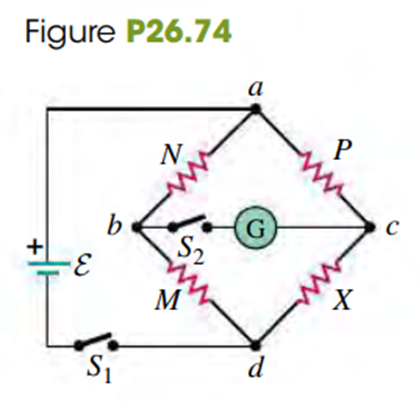

Question: The circuit shown in Fig. P26.74, called a Wheatstone Bridge, is used to determine the value of an unknown resistor X by comparison with three resistors M, N, and P whose resistances can be varied. For each setting, the resistance of each resistor is precisely known. With switches S1 and S2 closed, these resistors are varied until the current in the galvanometer G is zero; the bridge is then said to be balanced. (a) Show that under this condition the unknown resistance is given by X = MP/N. (This method permits very high precision in comparing resistors.) (b) If galvanometer G shows zero deflection when M = 850.0 Ω, N = 15.00 Ω, and P = 33.48 Ω, what is the unknown resistance X?
