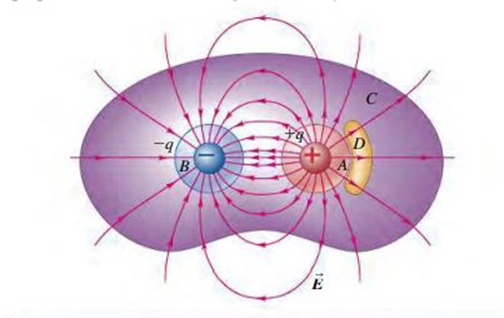

Suppose that in Fig. 22.15 both charges were positive. What would be the fluxes through each of the four surfaces in the example?

Short Answer

Expert verified

Since the charges are +ve there fore the electric field will be zero at mid distance of the charges. The electric field lines are directed out of the surface

Step by step solution

01

Direction of field lines if both the charges were positive

For Surface A

The lines of the field will be directed out wards from the surface.

For surface B

The lines will be directed out of the surface

For Surface C

The lines will be directed out of the surface

For Surface E

The lines will also be directed out of the surface

So, the electric field is directed outwards hence, there is a net field and a net charge as well.

02

Flux through the surface

From the above we have already seen that all the field lines are directed outwards. And since both the charges are positive, then the electric field is zero at mid distance of charges.The electric field lines will be directed out of the surface.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 魅影直播!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Cyclotrons are widely used in nuclear medicine for producing short-lived radioactive isotopes. These cyclotrons typically accelerate H-(the hydride ion, which has one proton and two electrons) to an energy of 5MeVto20MeV.This ion has a mass very close to that of a proton because the electron mass is negligible about 12000of the proton鈥檚 mass. A typical magnetic field in such cyclotrons is 1.9T..(a) What is the speed of a 5.0-MeVH-? (b) If the H-has energy 5.0MeVandB=1.9T what is the radius of this ion鈥檚 circulator orbit?

A parallel-plate capacitor is charged by being connected To a battery and is then disconnected from the battery. The separation between the plates is then doubled. How does the electric Field change? The potential difference? The total energy? Explain.

BIO Transmission of Nerve Impulses. Nerve cells transmit electric

signals through their long tubular axons. These signals propagate due to a

sudden rush of Na+ions, each with charge +e, into the axon. Measurements

have revealed that typically about 5.6脳1011Na+ions enter each meter of the

axon during a time of . What is the current during this inflow of charge

in a meter of axon?

Two parallel-plate capacitors, identical except that one has twice the plate separation of the other, are charged by the Same voltage source. Which capacitor has a stronger electric field Between the plates? Which capacitor has a greater charge? Which has greater energy density? Explain your reasoning.

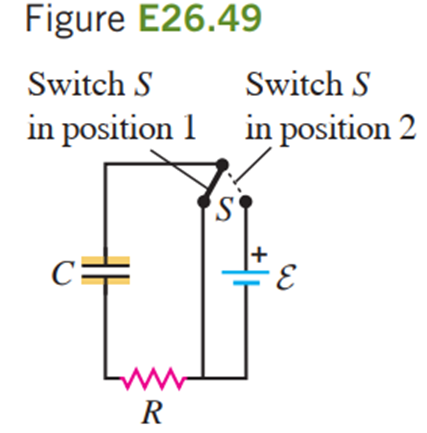

Question: In the circuit shown in Fig. E26.49, C = 5.90 mF, 詯 = 28.0 V, and the emf has negligible resistance. Initially, the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2 so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after S is moved to position 2? (b) After S has been in position 2 for 3.00 ms, the charge on the capacitor is measured to be 110 mC What is the value of the resistance R? (c) How long after S is moved to position 2 will the charge on the capacitor be equal to 99.0% of the final value found in part (a)?
